Grounding a power supply not onlysafeguards your PC from possible hazards, but alsoprotects you from electric shocksat the time of current leakage or short circuits.
Let me clarify to you that, as long as yourhouse has proper earthing and you have a PSU power cord with 3 prongs, there’s nothing to worry about grounding. Any leakage current from your PSU will go down to the earth via the grounding pin in the power supply cord.
Although you may find information on the Internet regarding DIY grounding, it might not be a feasible option for everyone. Having said that, here are a few essential things to examine that should help you know whether your PSU is grounded.
Check if Your House is Properly Grounded

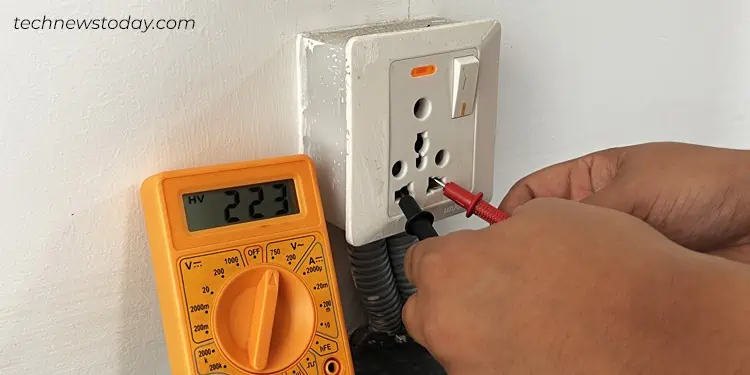

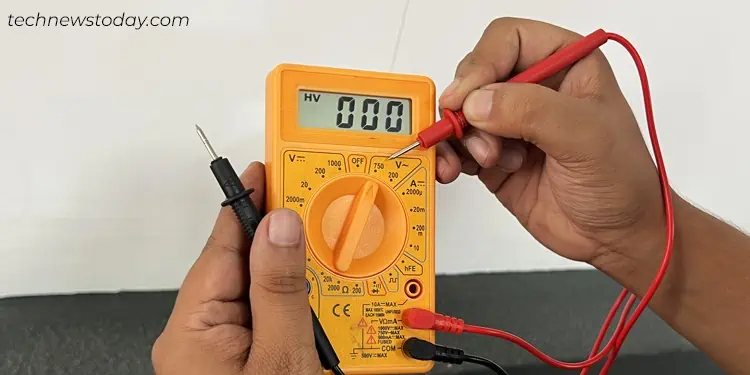

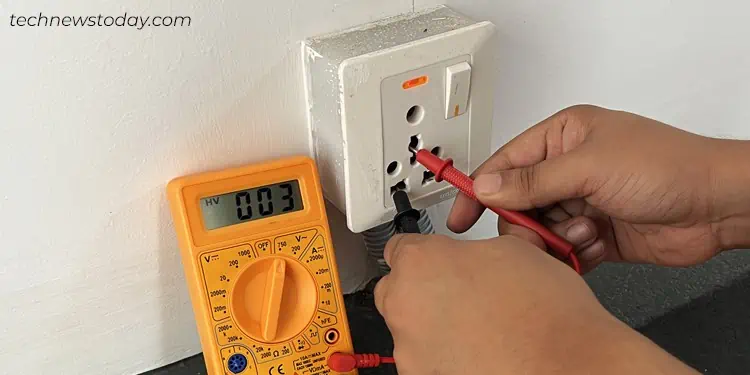

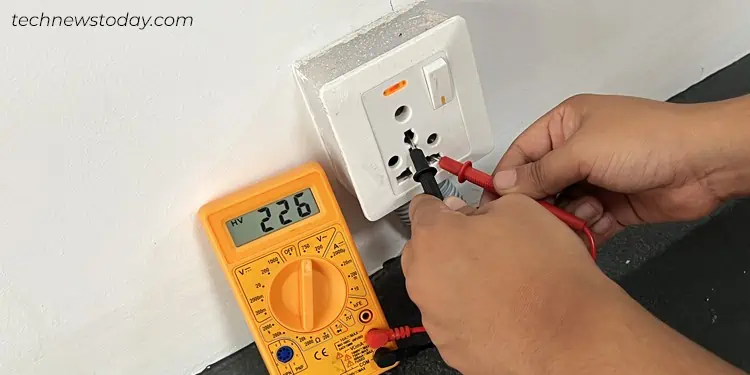

Is there any wire coming off your house and going straight to the ground? If yes, Brilliant! Your house is already grounded. If you could not confirm it, here’re quick steps to help you check the grounding in your house.
But hold on! Before coming to a conclusion, consider testing a few other wall outlets too. There might be grounding issues in only one of them.
Then what should you do if none of the wall sockets are grounded? Simple! Get an electrician and set up grounding in your house.
Only Use AC Power Cord With Three Prongs
To be honest, if your power cord does not have three prongs like in the image below, there’s no point whether or not you have grounding in your house. Without the grounding pin, there’s no way the leakage current goes down to the earth.
Having said that, there might be some connectors that have two prongs and one contact pin at the top for grounding. Like this.
In such cases, you should get aBanana jack outlet plug adapterto ground your power supply. If not available, consider getting a replacement power cord with three prongs.
If you are using an extension power cord, UPS, or a surge suppressor with your PC, ensure they also have a proper grounding pin in their connector.
Do note that in a few cases, the PSU might not be grounded, even if you have three prongs on the connector and have well set earthing in the house. Surprising right?
Let me quickly tell you that such things often happen when there are internal faults in the power cord itself. you may verify it by performing the continuity test.
