The TPM feature on ASUS motherboards provides advanced security features, such as Bitlocker Encryption, Windows Hello, fingerprint/face recognition, and more.
Whether you’re using hardware or firmware-level TPM, you may enable the option easily from the ASUS BIOS. FindfTPM(on AMD boards) orPCH-FW Configuration(on Intel boards) in theAdvancedtab and set the switch toEnabled.
Despite simple toggling, you may still encounter unexpected TPM errors–a situation that I recall when attempting toinstall Windows 11myself. Even though my ASUS motherboard supported the specifiedTPM 2.0 feature, I had to enable the ‘Security Device Support’ first.
For users experiencing a similar problem, this guide covers everything from configuring TPM settings to enabling the 2.0 version.
Access UEFI BIOS Utility

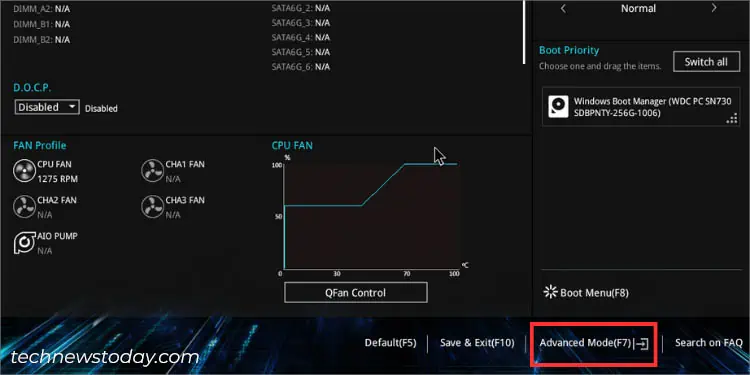

Let’s begin the process bygetting to the ASUS UEFI/BIOS screen. This involves using the appropriate key before the POST is completed and switching fromEZtoAdvancedmode (if required):
While the UEFI interface of both the Intel and AMD motherboards is identical, there are certain processor-specific options. That being said, the steps for configuring TPMvary slightlybut the general concept remains the same.

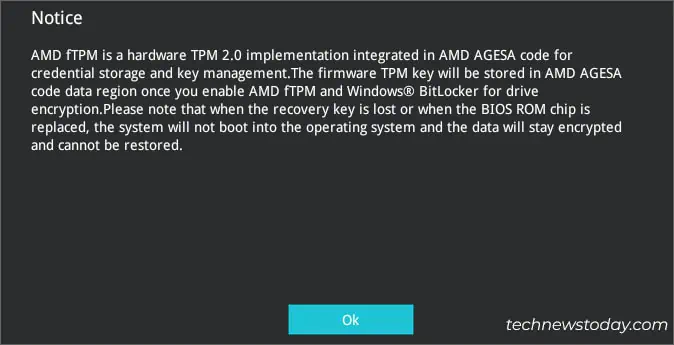

Caution:Enabling thefTPMorPCH-FWoptions might lead to booting issues in case you lose the recovery key (for users who have implemented BitLocker for drive encryption) or even after the BIOS chip replacement.
For ASUS AMD Motherboards

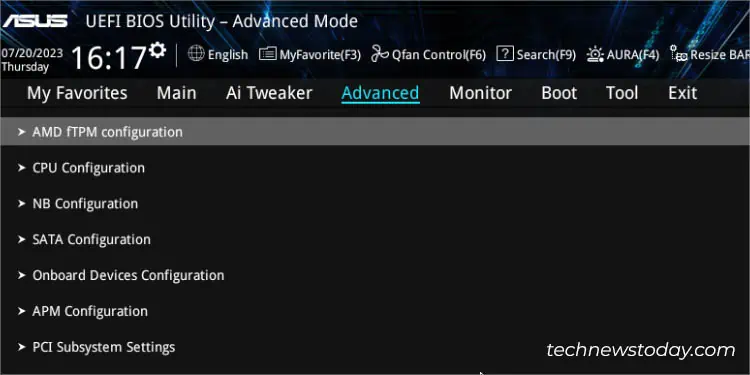

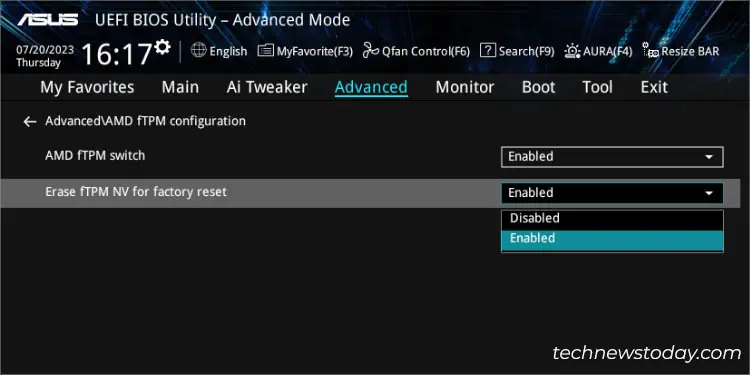

The security protocol on ASUS AMD BIOS is referred to asfTPM. Once you have entered the ASUS BIOS Utility, follow the step-by-step instructions below to enable this option.
To demonstrate, I have used thePRIME B450 PLUSmotherboard. While the process is almost the same in all the AMD models, you may findcontrasting field nameson every series, which should still not be confusing.
For ASUS Intel Motherboards
On the flip side, Intel provides its own version calledPlatform Trust Technology (PTT). As stated above, the configuration might slightly be different from the ASUS AMD BIOS:
Additional Tip:In case the PCH-FW Configuration option is unavailable, trydisabling the CSM, save the setting, and check for it again.

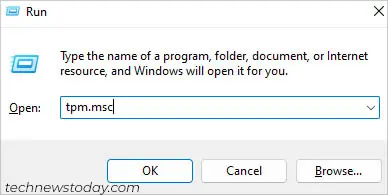

Verify in Windows TPM Management
